Sensor Specifications
Type
VOx Uncooled
Resolution
384×288
Pixel Pitch
12μm
NETD
<25 mK
Frame Rate
50 Hz
Optical Specifications
Objective Lens
35mm, F1.0
Optical Zoom
3.5×
Field of View (H), degrees/yd@100yd
7.5°/13.2yd
Digital Zoom
1-4×
Eye Relief
48mm
Diopter Adjustment
-5D to +5D
Detection Range
1800m / 1969yd
Laser Rangefinding
Measurement Range
1200m / 1312yd
Measurement Accuracy
±1m / ±1.09yd
Display Specifications
Type
AMOLED
Resolution
1024×768
Wi-Fi
Wireless Protocol
Wi-Fi Frequency
2.4GHz
Video Recorder
Video / Photo Resolution
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory
32GB
Physical Specifications
Degree of Protection, IP code
IP67
Operating Temperature Range
-20℃ to +50℃ / -4°F to +122°F
Weight
454 g / 1 lb
Dimensions
135×64×56 mm / 5.3×2.5×2.2 in
Connections and Compatibilities
Battery Type
18650
Operating Time on Battery Pack (at t=25℃/72°F)
4 h
External Power Supply, V
5V (Type C USB)
Max Recoil Power on Rifled Weapon (Eo)
1000g / 6000J (Approximately equivalent to 300 Win Mag)
Compatible Mounts
Picatinny mount (Included

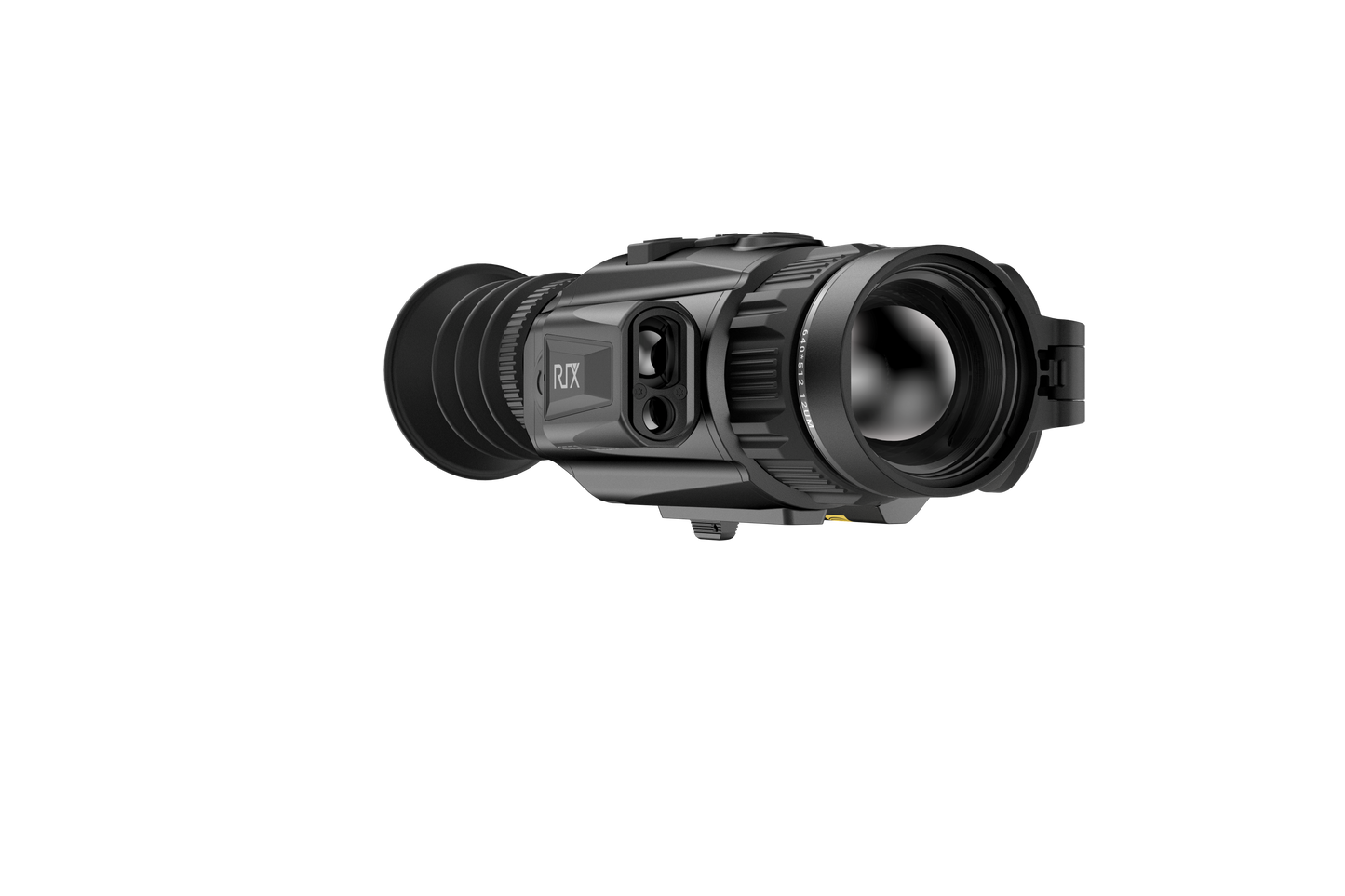

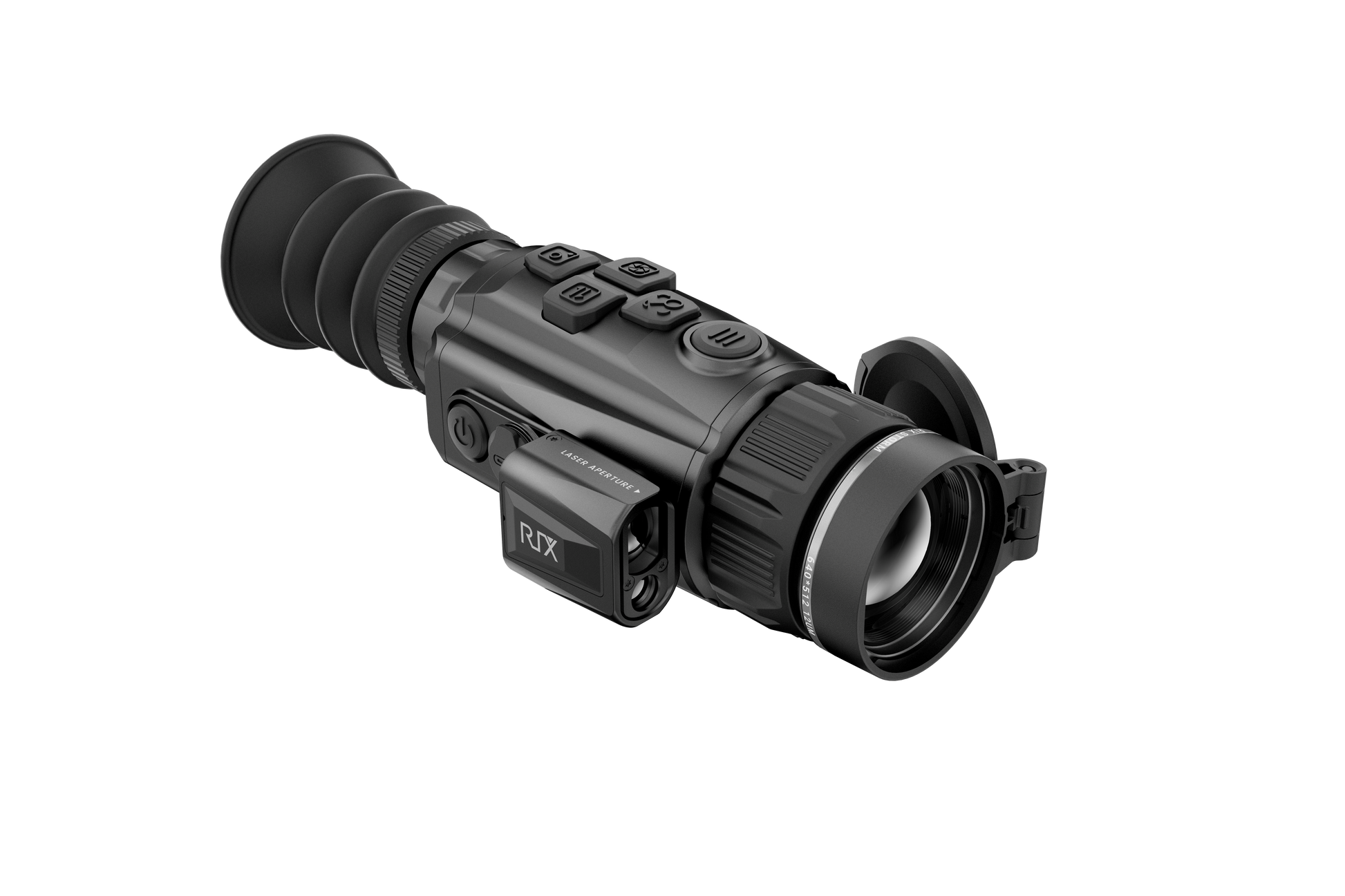

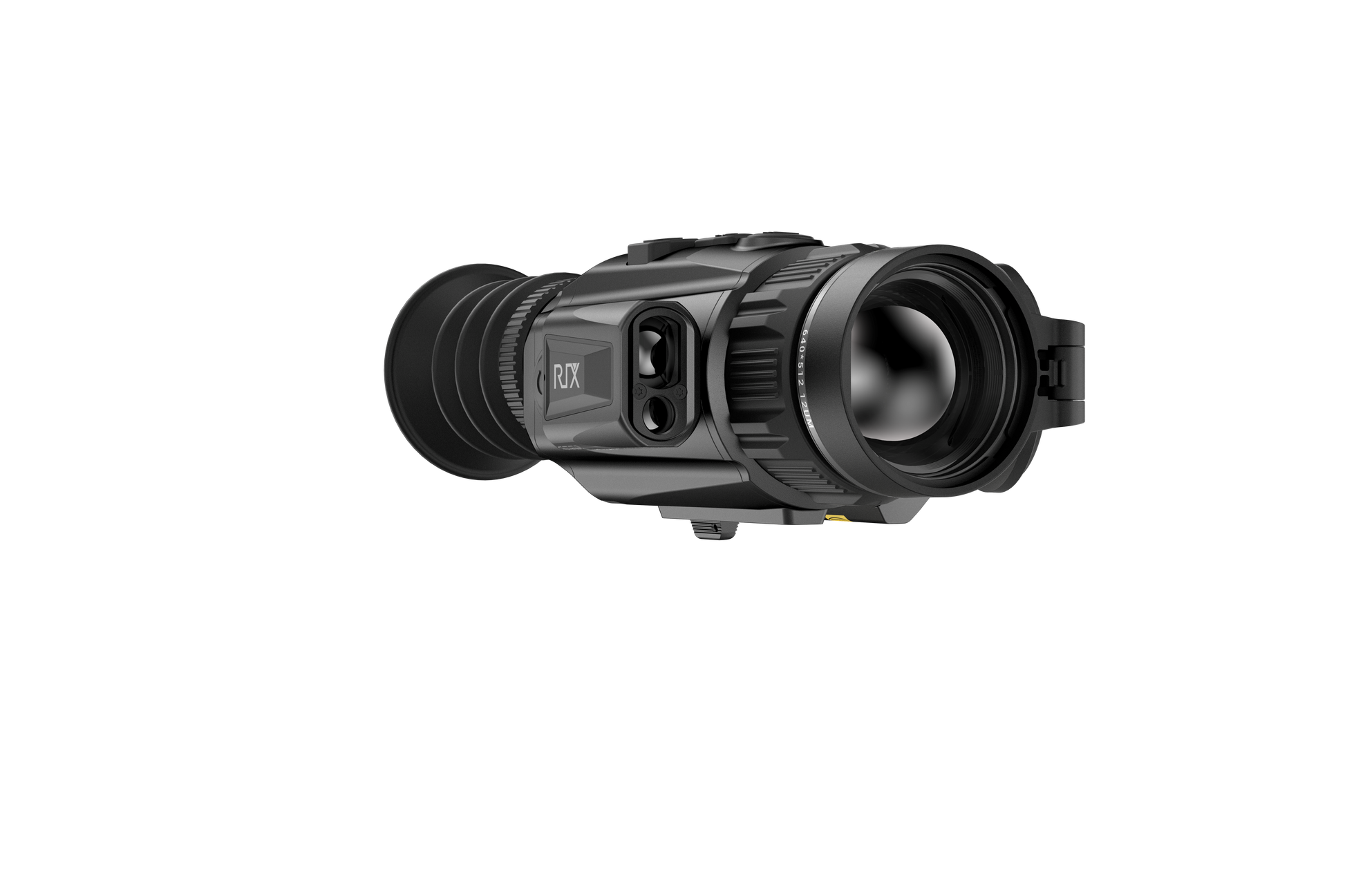

COMPACT LRF WITH FREE BALLISTICS
The S3R and S6R feature a built-in laser rangefinder, redesigned with advanced technology to be more compact without adding weight or affecting usability. Despite its compact size, it delivers a detection range of up to 1,312 yards with high precision of ±1 meter (1.09 yards). It also comes with a free ballistic calculator, significantly boosting long-range shooting accuracy.

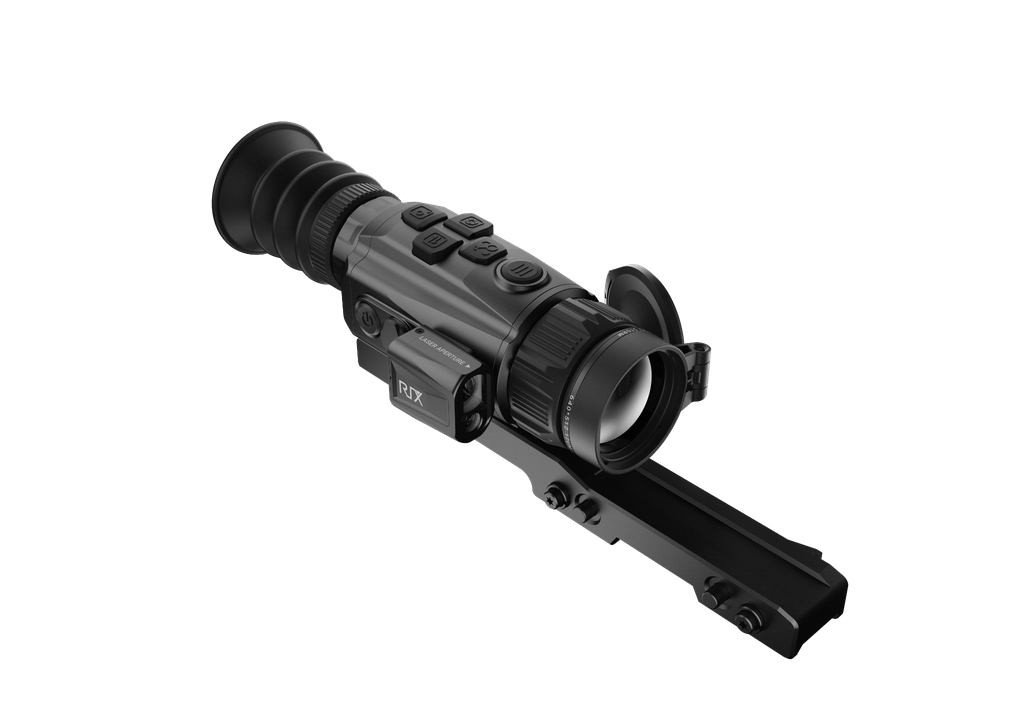

READY IN HAND OR ON RIFLE

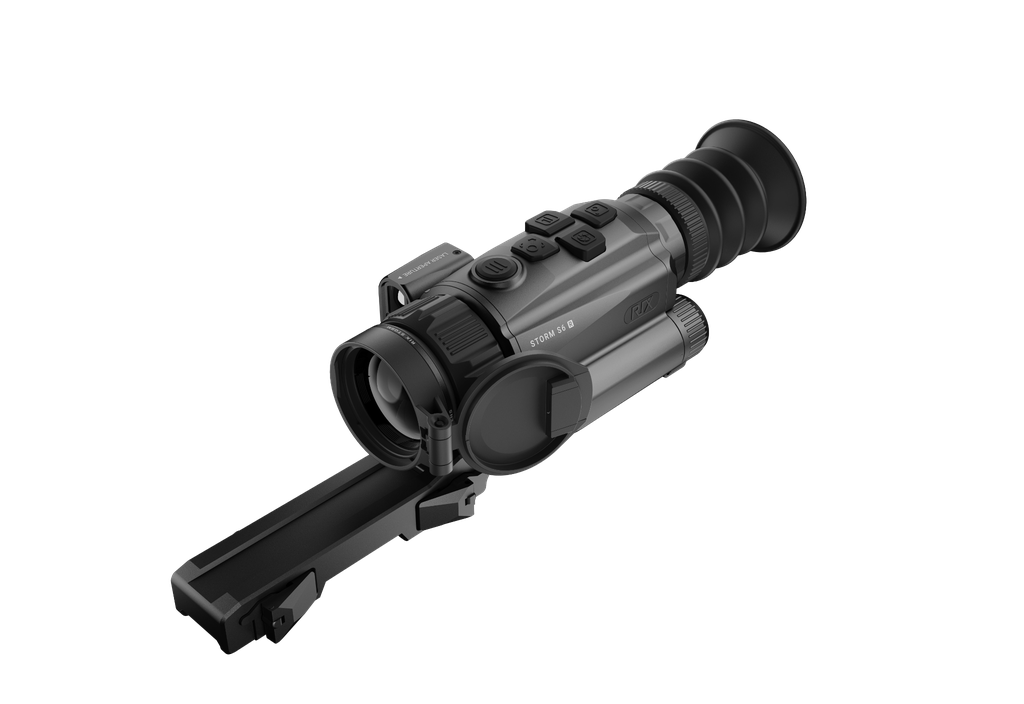

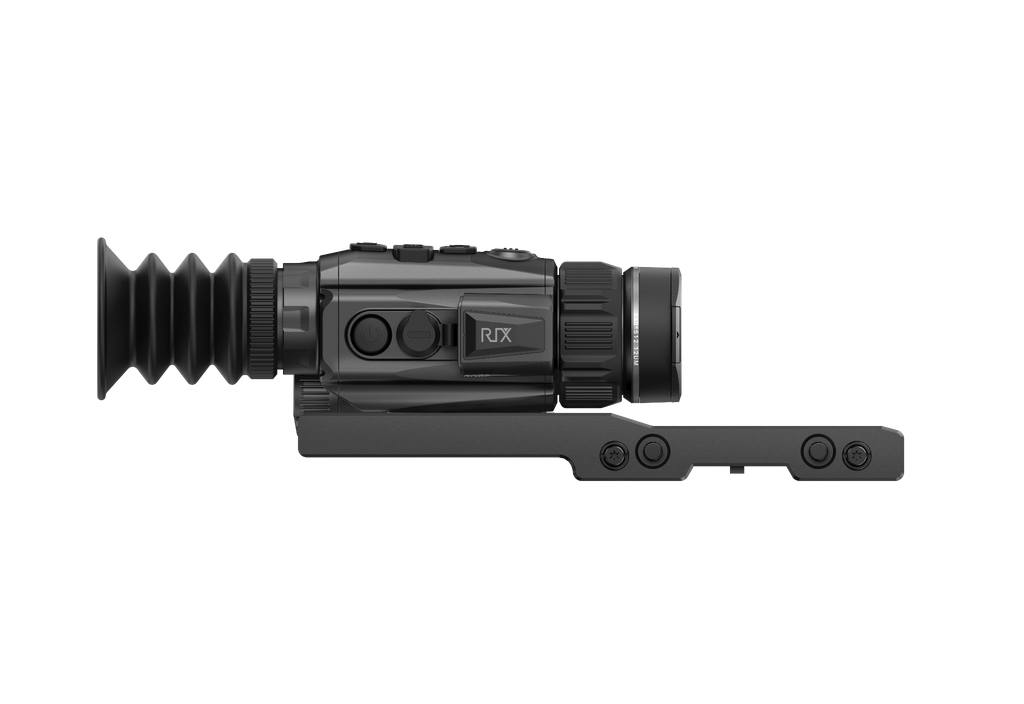

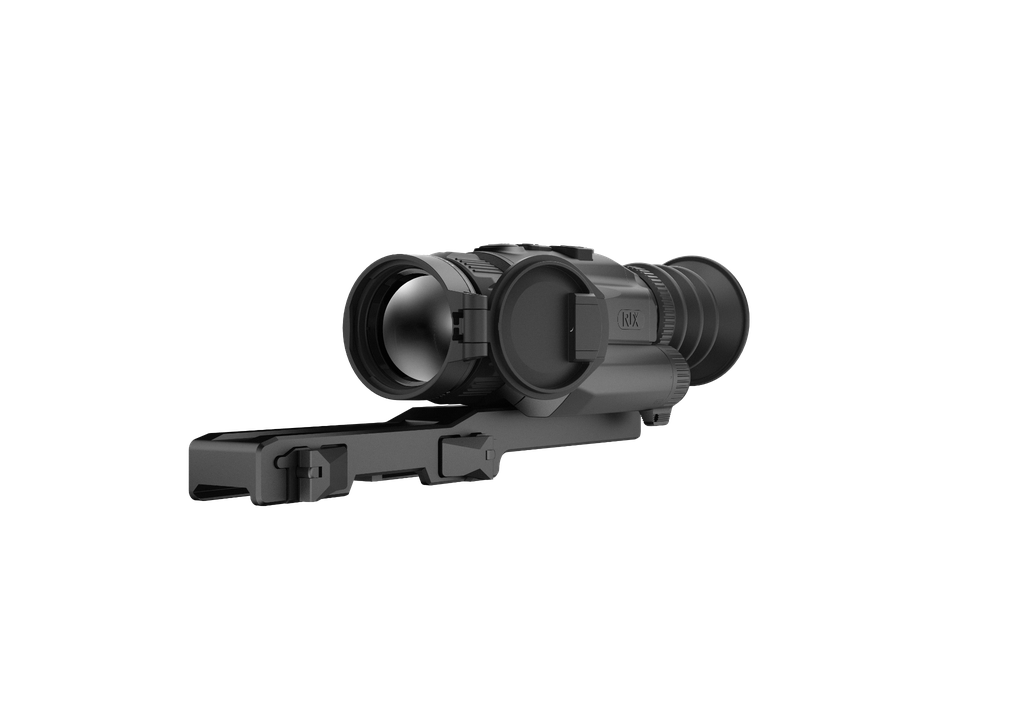

Built for mobility, the STORM series is ultra-light—even the S3R and S6R weigh just 1lb, so you can use them handheld without wearing out your arm. Every unit includes a free QD mount for quick and easy rifle setup.
POWERFUL BASE MAGNIFICATION
The S6R starts at 2×, but even after digital zoom to 3×, it delivers even better image clarity than the S3R—while offering a wider field of view and sharper visuals at closer ranges.

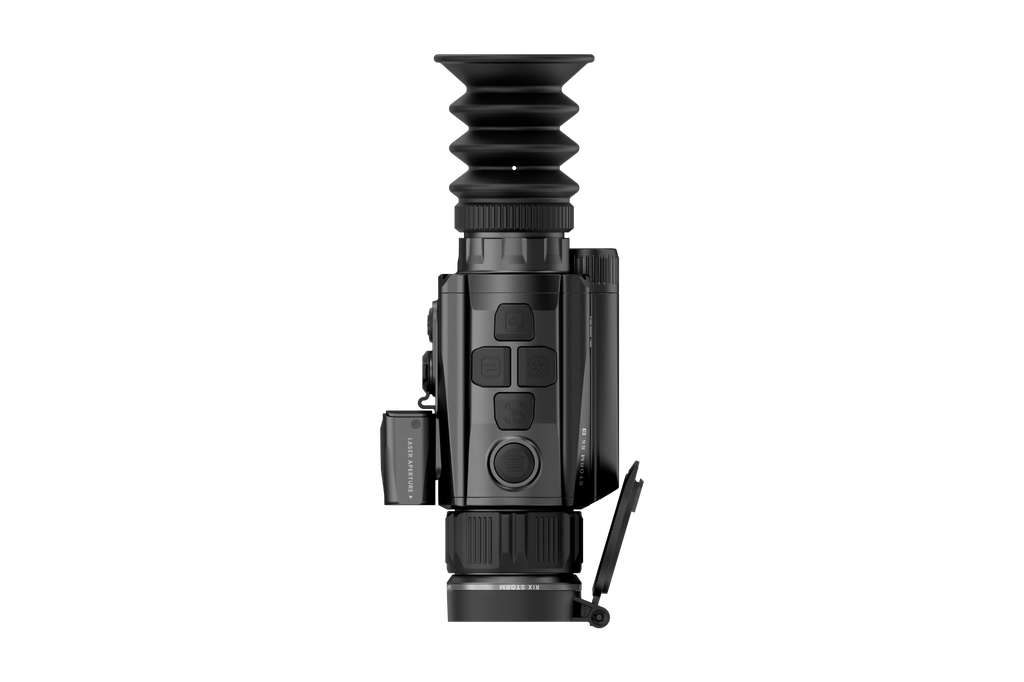

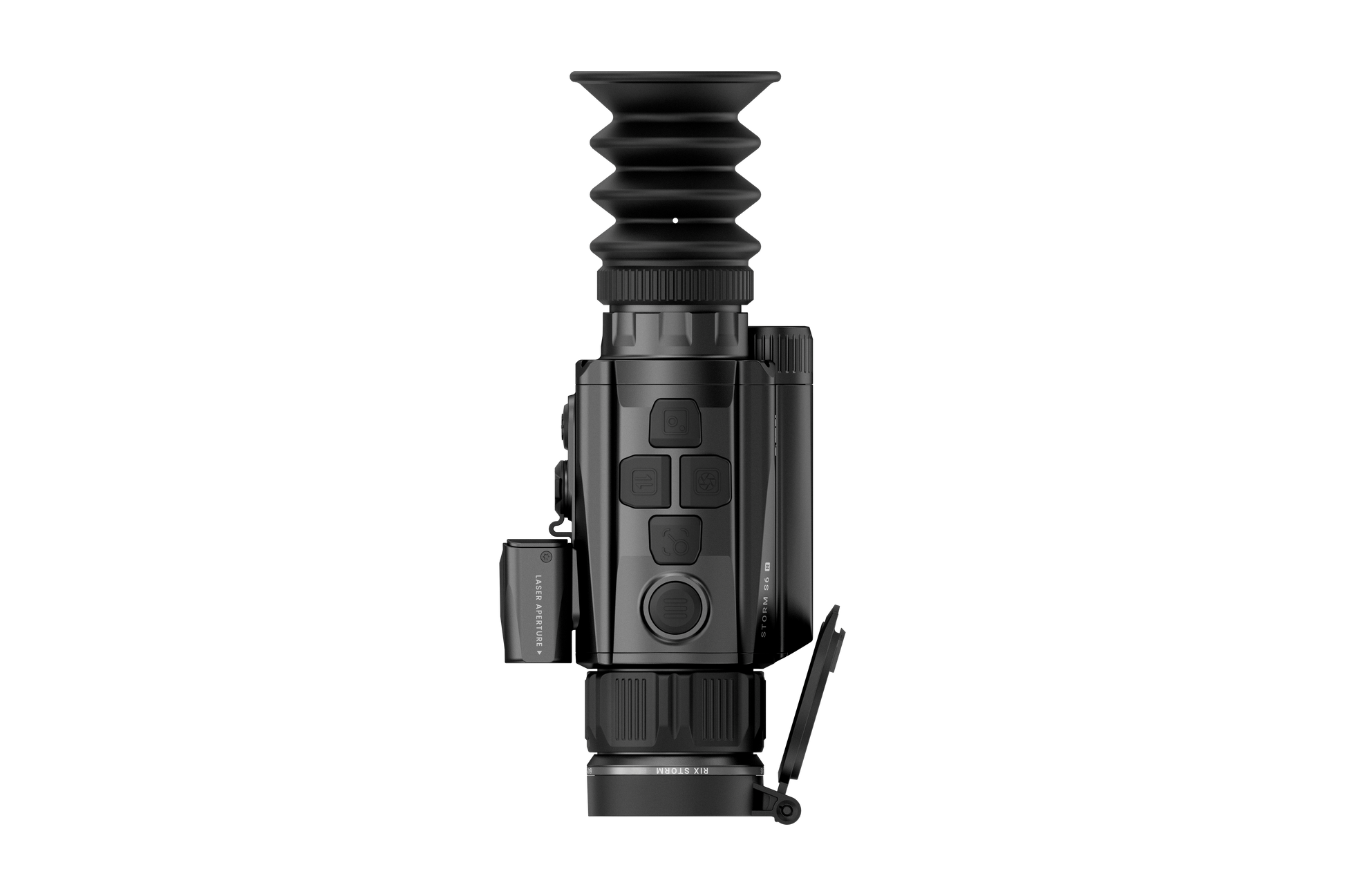

INTUITIVE OPERATING SYSTEM
The enlarged, four-directional button layout makes it easy to identify and operate each control, even when wearing gloves, making it convenient to use as a scanner as well. The device's buttons are directly mapped to the user interface (UI). When you press a button, the corresponding function on the UI lights up, providing a clear indication of which function you have triggered.
RETURN TO CENTER FUNCTION (RTC)
After zeroing, the RTC function will automatically reposition the reticle closer to the center of the x-axis and y-axis. If the deviation from the center position is minimal, it can even realign the reticle directly to the center, enabling you to have a more comfortable field of view and making it easier to maintain focus on the target.
ADJUSTABLE PICTURE-IN-PICTURE (PIP)
Unlike other scopes where the Picture-in-Picture (PIP) image is simply magnified along with the outer image, the STORM allows you to adjust the magnification level of the PIP image independently, enabling users to maintain awareness of the surroundings and improve shooting accuracy using the PIP function.
1000g IMPACT RESISTANCE
The STORM is built to withstand impacts of up to 1000g, making it an excellent choice for hunting weapons with larger calibers such as .375 H&H, 12-gauge, and 9.3×64. Its durable design ensures long-term reliability and remains undamaged even in the most challenging conditions.
MORE FEATURES
Reliable Clarity in Any Humidity
Equipped with a 12µm sensor and a 1024 OLED display, STORM reduces image noise with its Sunny Mode—giving you a cleaner, more detailed view. But it doesn’t stop there. In high-humidity conditions, Rain Mode boosts thermal sensitivity to reveal subtle temperature differences. Whether it’s a rainy day or a foggy night, STORM ensures you can spot your target with accuracy and confidence.
IP67 Waterproof
Engineered with an impressive IP67 waterproof, the STORM is fortified against water intrusion, ensuring robust protection for the device. This exceptional waterproofing capability safeguards the internal components, significantly extending its lifespan
Wi-Fi Integration with RIX+ APP
The STORM has built-in Wi-Fi, enabling seamless connectivity with your Android or iOS smartphone through the RIX+ app. This powerful combination provides numerous advantages, such as wireless software updates and live image streaming to your mobile device screen.
Photo, Video Recording and Built-in MIC
The STORM offers photo and video recording capabilities, ensuring effortless capture of remarkable moments day or night. Experience uncompromising audio quality with our carefully selected built-in microphone.
Versatile Reticle and LRF Customization
STORM offers 32 reticle combinations with 4 colors and 8 styles to match your shooting needs. You can also customize the rangefinder display—adjust its position and style via the app for a fully personalized setup.
