Fitting Instructions

Torque Settings

For any rail screwing into the action of the rifle, we recommend 12-14 in/lbs.

Check holes are clean and unobstructed.

For a rail fitting onto the dovetail or existing picatinny/weaver, we recommend finger tight with the allen key provided. Using the long end to fit and the short end to turn.

1 1

Britannia Rails

Savage Revel 0MOA Standard Length Aluminium

Savage Revel 0MOA Standard Length Aluminium

SKU: 1-0043

19 in stock

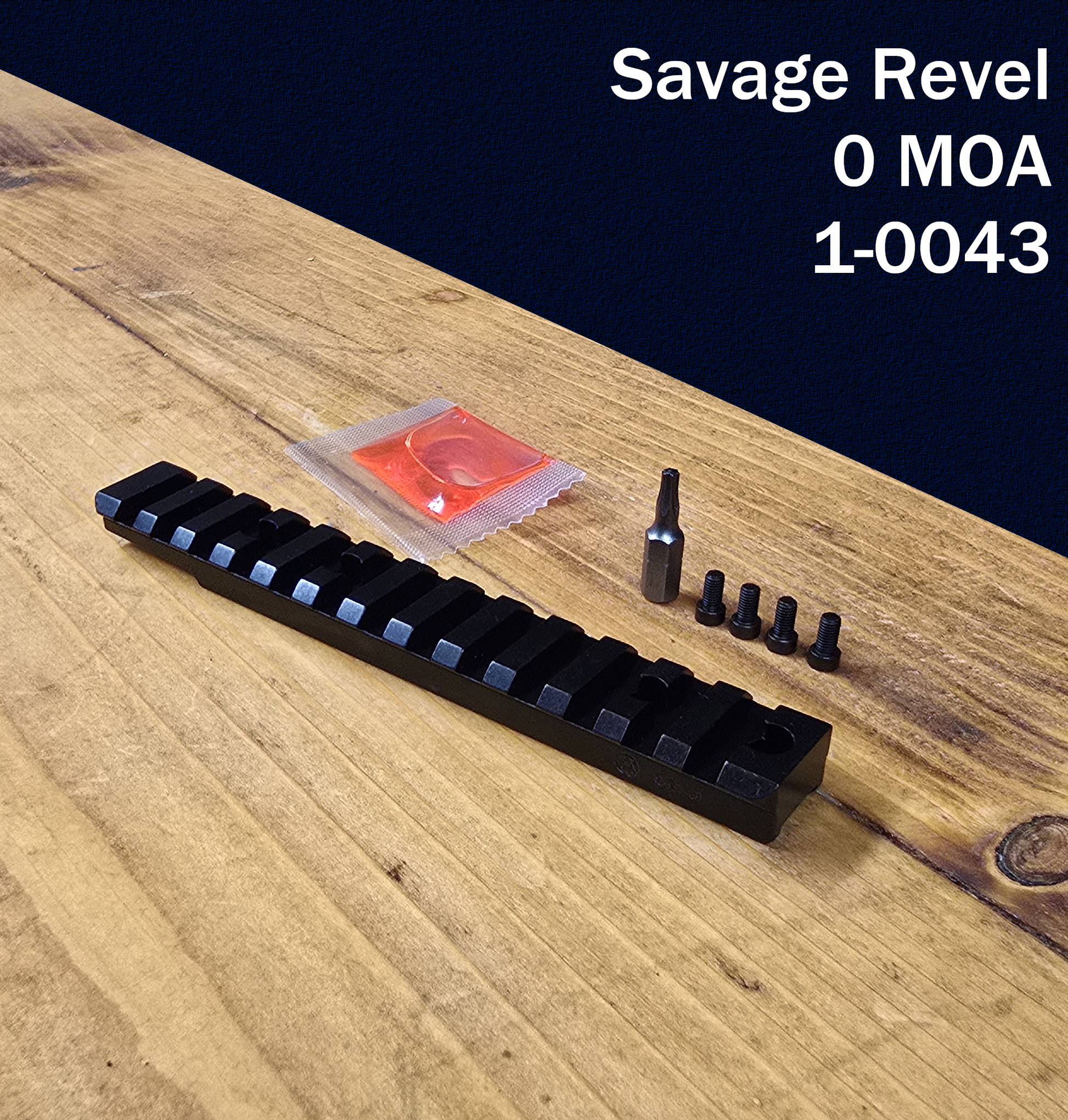

Savage Revel 0 MOA Standard-Length Picatinny Rail – Aluminium

Enhance your Savage Revel lever-action with a precision-engineered 0 MOA Picatinny rail, CNC-machined from aerospace-grade aluminium to deliver dependable optic mounting with lightweight strength and refined durability.

Premium Materials & Construction

  • Machined from 6082‑T6 aluminium for optimal rigidity and reduced weight—engineered to maintain zero under repeated recoil.

  • Hard-anodised in matte black for corrosion resistance and a non-reflective, tactical finish.

Purpose-Built for the Savage Revel

  • Designed specifically for the Savage Revel’s standard-length receiver—no gunsmithing or modification required.

  • Full-length Picatinny profile offers complete flexibility for mounting scopes, red dot sights, magnifiers or QD accessories.

True 0 MOA Alignment

  • Precisely machined with a zero-MOA incline—ideal for rimfire and small-game engagements where elevation correction isn’t needed.

  • Maintains absolute alignment with your barrel for consistent and reliable optic positioning.

Streamlined, Functional Profile

  • Overall length approximately 5.094″, with a centre spread of 2.364″—engineered to match the rifle’s factory mounting footprint.

  • Low profile (~0.4″) ensures compatibility with standard-height rings and keeps your optic setup compact.

Straightforward Installation

  • Supplied with #6‑48 Torx screws and T‑10 driver bit—ready for installation straight out of the box.

  • Symmetrical design supports both right- and left-hand ejection patterns.

  • Recommended torque setting of 20 in‑lb. For best results, apply a threadlocker (e.g. Loctite Blue, not included).

Technical Specifications

Feature Specification
Material 6082‑T6 aluminium, hard-anodised matte black
Rail Type Mil‑Std‑1913 Picatinny, full-length
Built-in Elevation 0 MOA
Overall Length Approx. 5.094″
Centre Hole Spread Approx. 2.364″
Rail Height Approx. 0.4″ above receiver
Mounting Hardware #6‑48 screws, T‑10 Torx bit included, Vibra-tite Threadlock
Compatibility Savage Revel (standard-length receiver)
Finish Matte black anodised
Manufactured In Great Britain

Refined Accuracy, Simplified Setup

Whether you're setting up for precise plinking, small game hunting, or general target use, this 0 MOA rail delivers a solid foundation for optics on your Savage Revel. Minimal weight, maximum versatility—built to perform without compromise.
