Nano

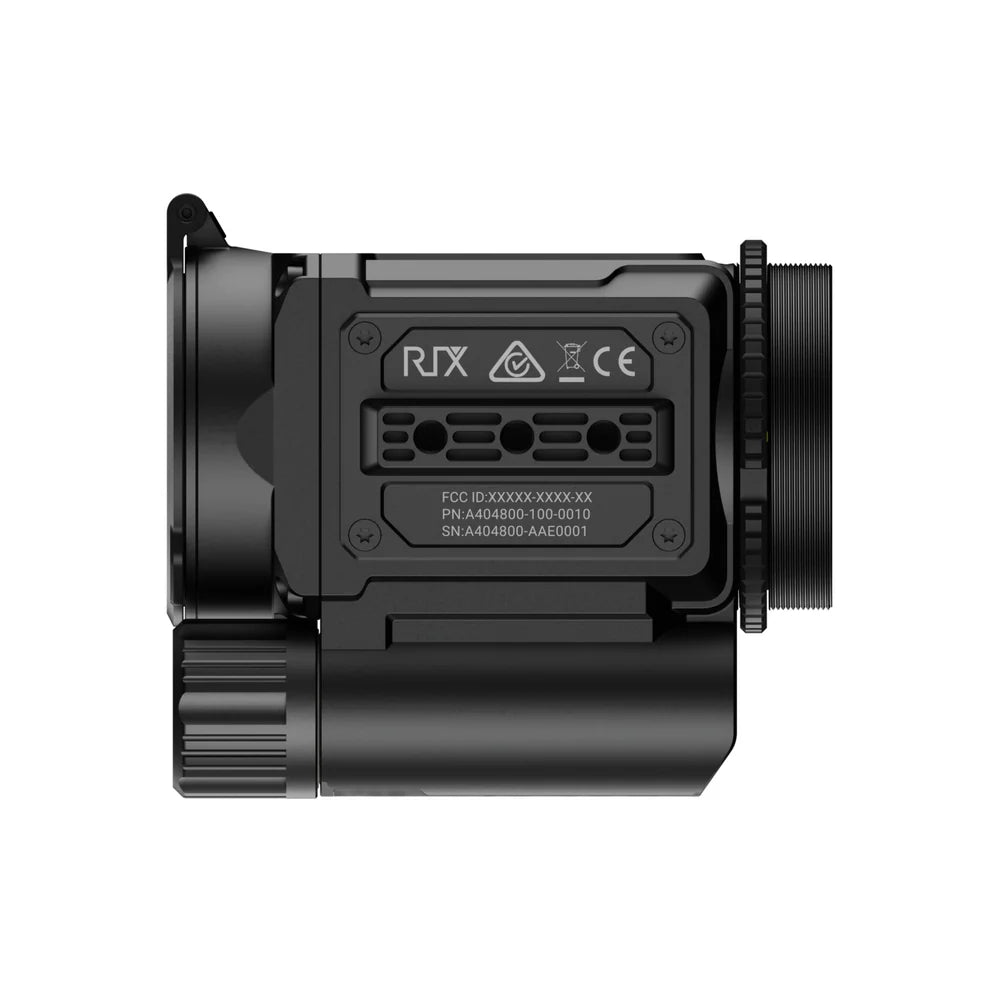

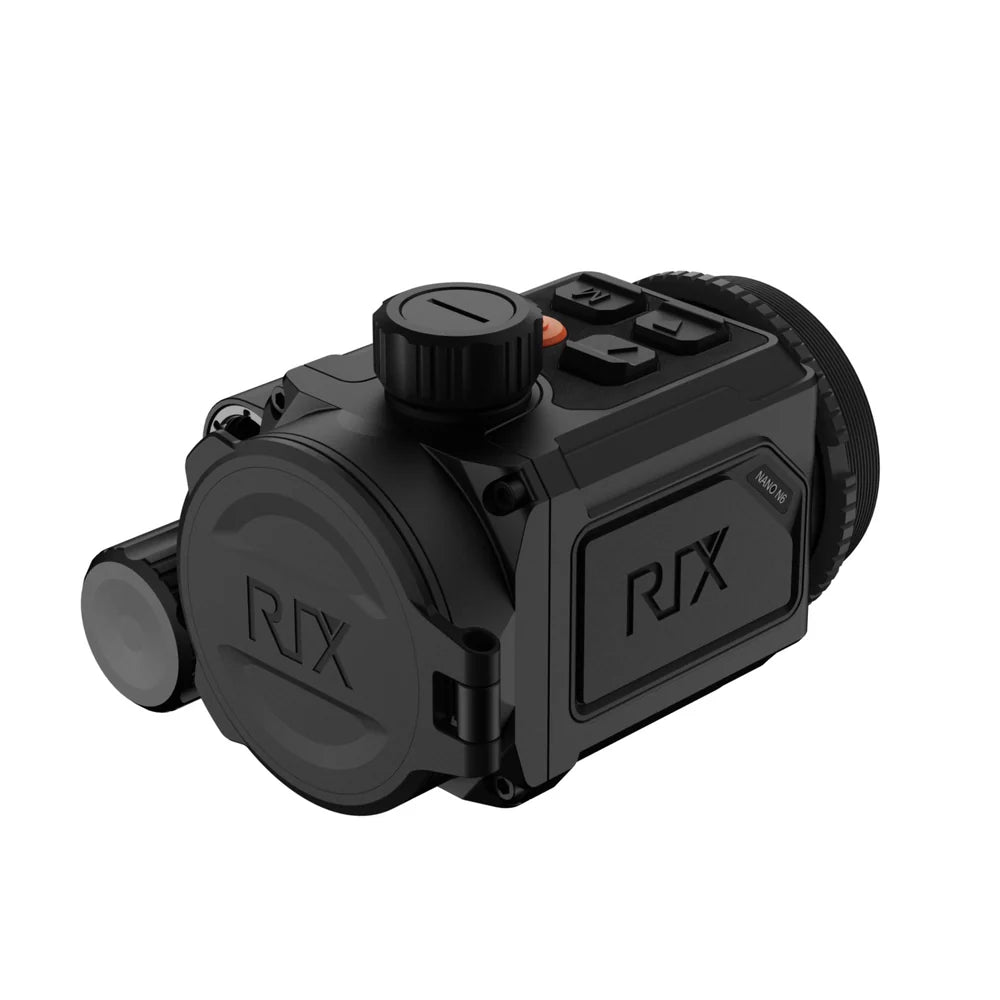

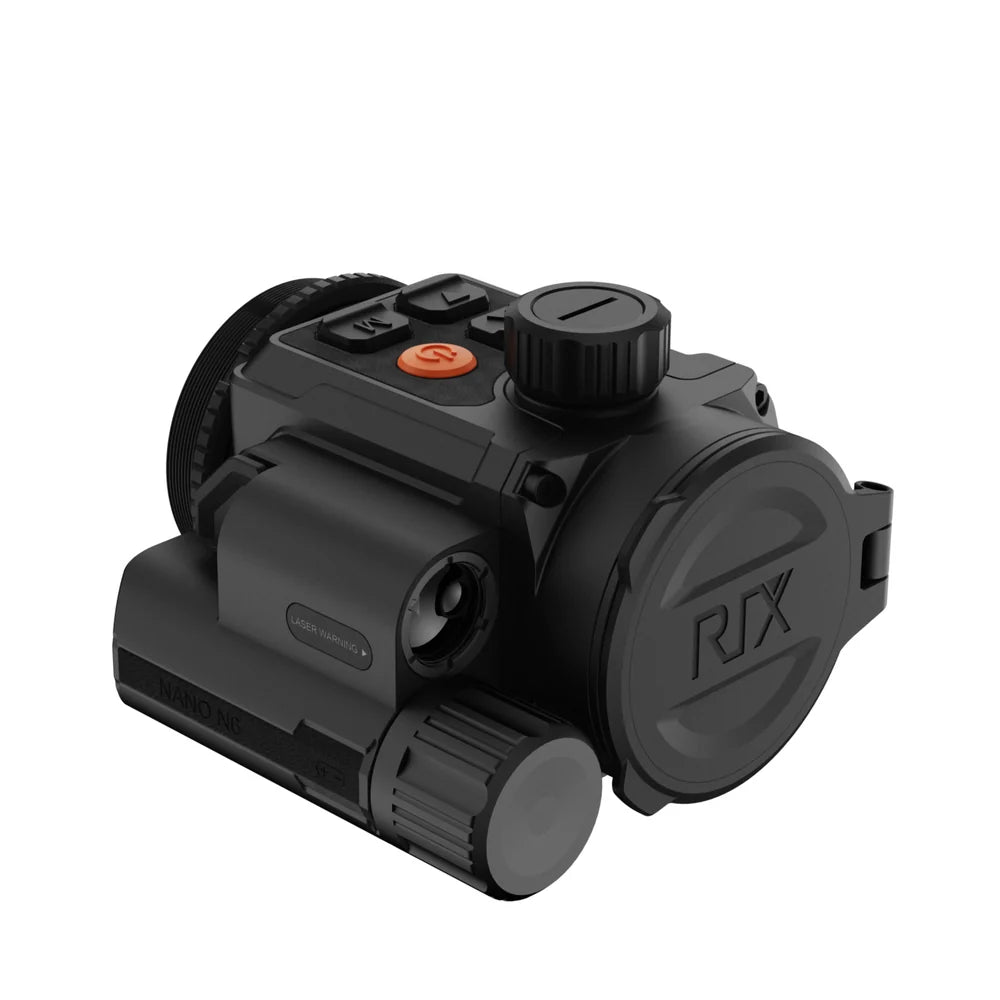

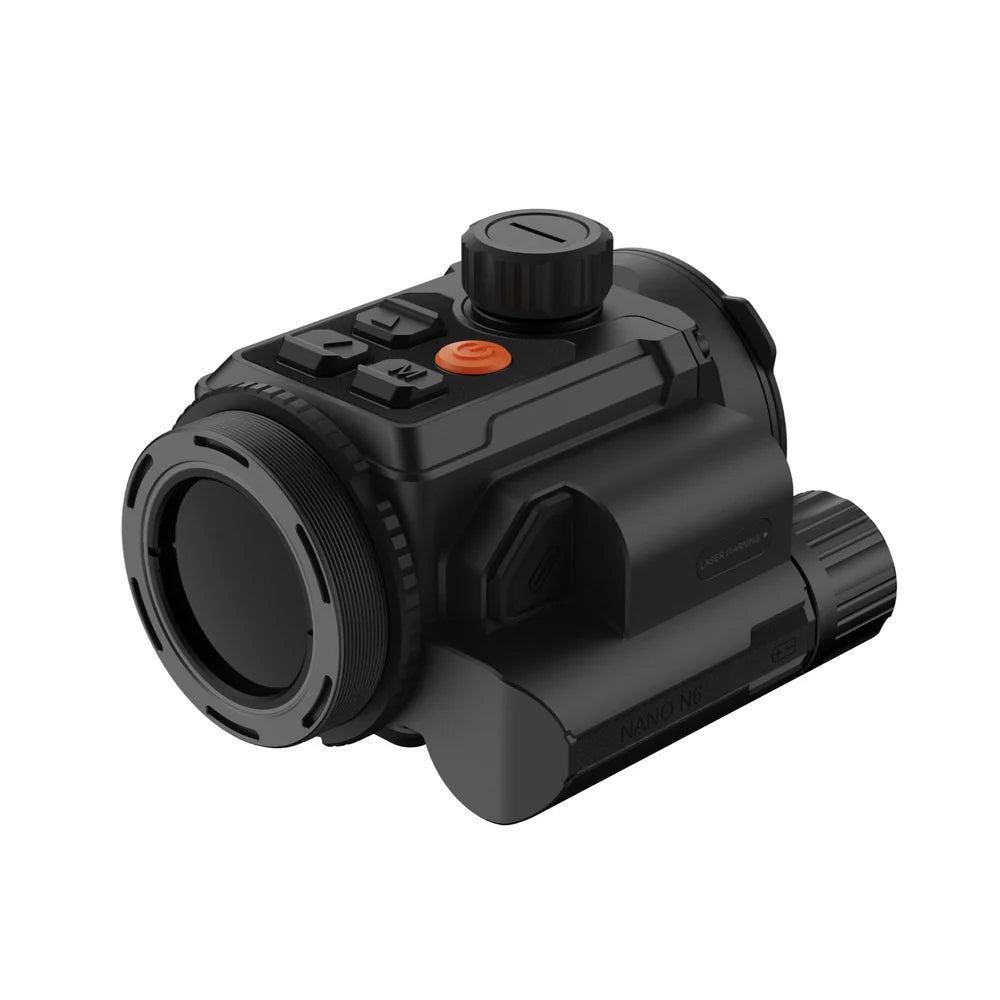

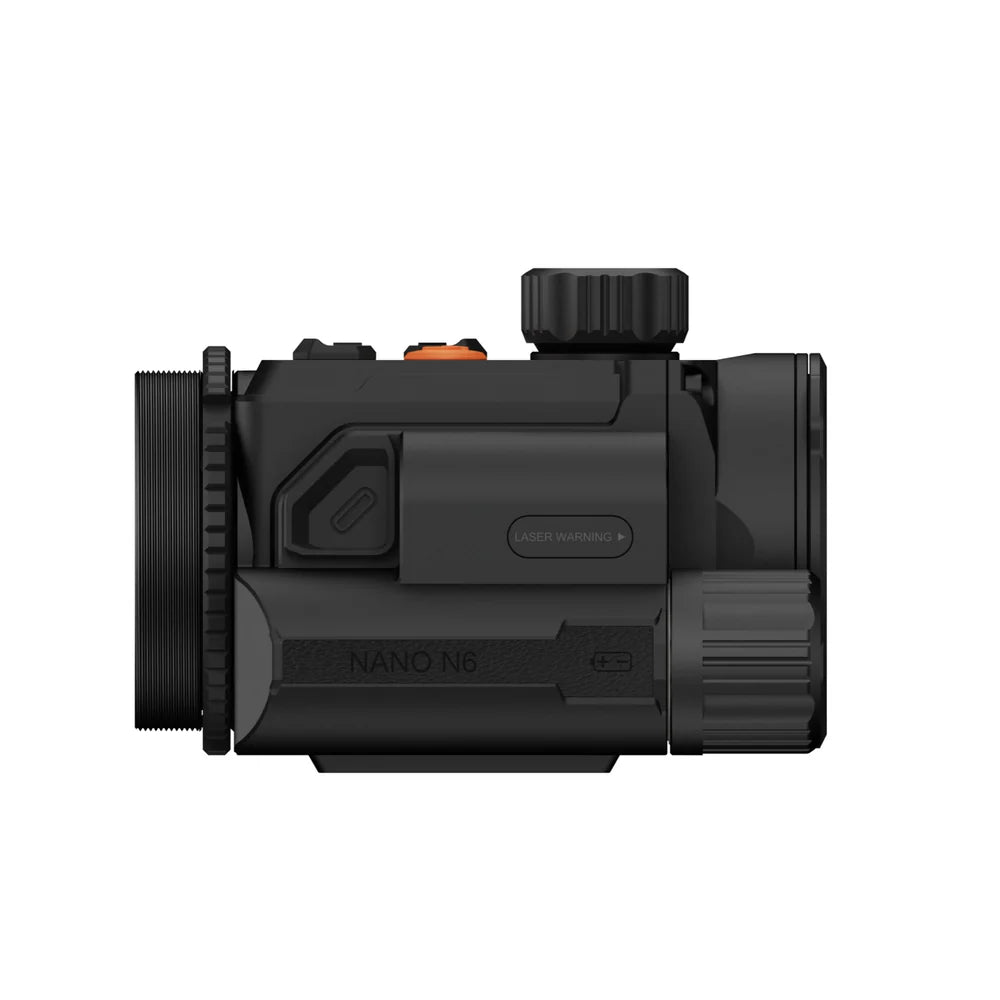

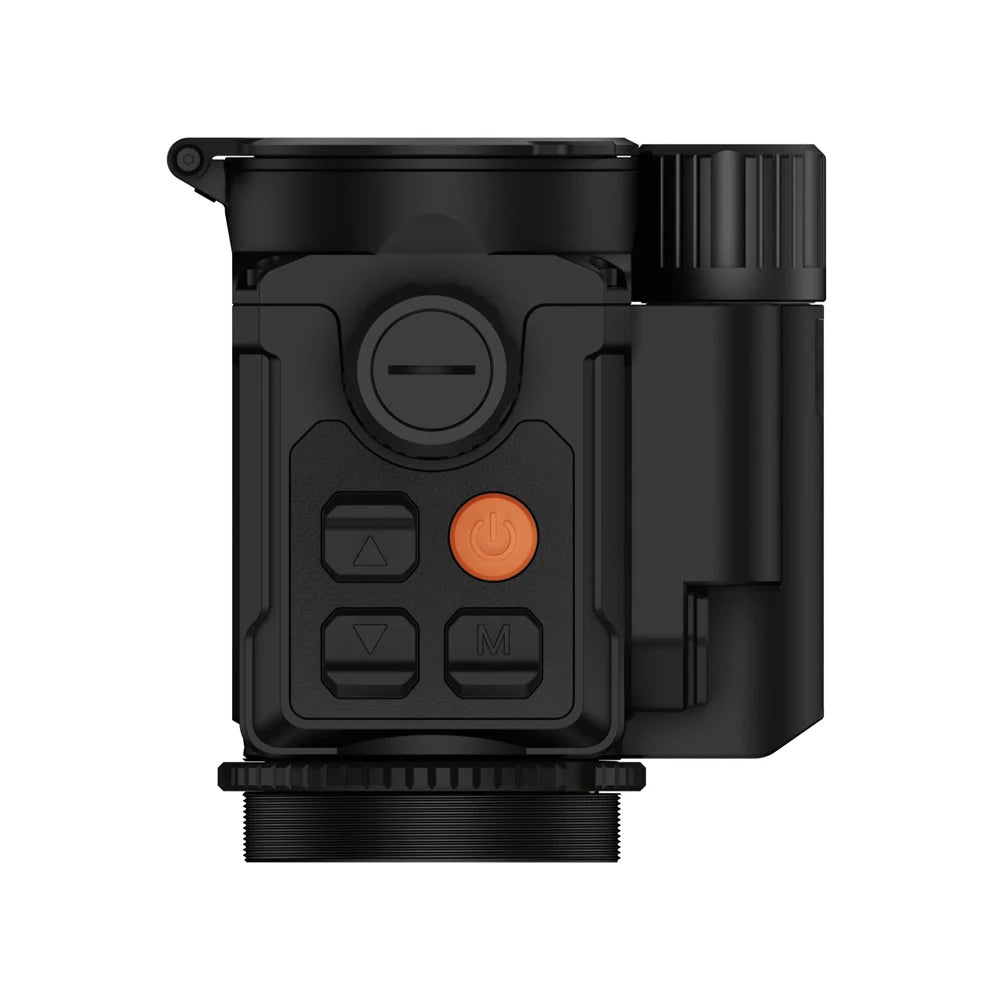

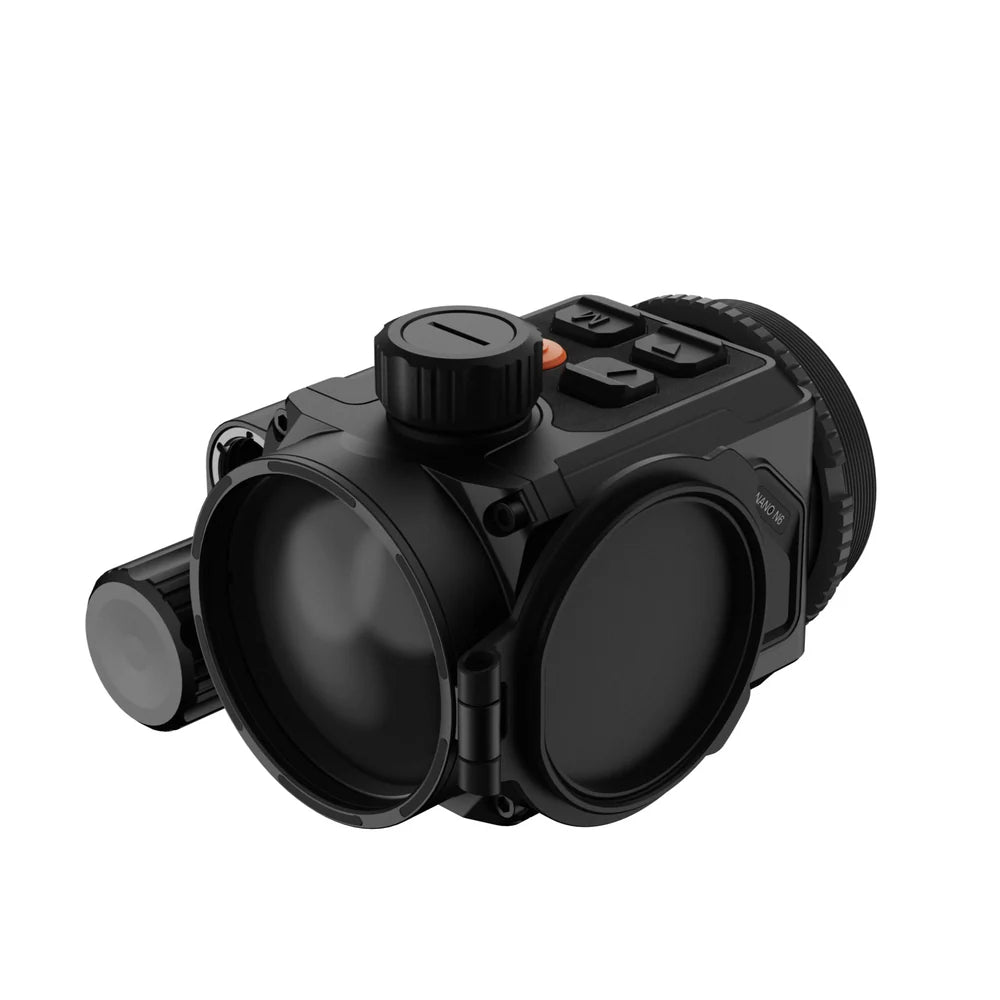

RIX Optics NANO N6 Thermal Imaging Clip-On

The RIX Optics NANO N6 is an ultra-compact thermal imaging clip-on designed to convert a properly zeroed daytime riflescope into a high-performance thermal optic. Measuring less than 100mm long, it adds minimal bulk to your setup while maintaining your existing point of aim without the need to re-zero.

Its 640×512 thermal sensor, ultra-sensitive ≤15mK NETD and fast F1.0 germanium optics deliver a detailed, high-contrast image in difficult weather and low-contrast conditions. A built-in 1500m laser rangefinder and ballistic calculation provide real-time ranging support, while the removable 18650 battery system allows batteries to be changed quickly in the field.

Pre-Zeroed Clip-On Performance

Mount the NANO N6 in front of a properly zeroed daytime riflescope and retain your existing point of aim. The unit offers shooting accuracy of ≤1 MOA and a fine 1.2cm at 100m adjustment value for precise alignment.

Compact and Lightweight

At only 99.8mm long and 435g, the NANO N6 minimises additional front-end length and weight. Its compact design helps maintain rifle balance and provides a more stable, comfortable setup during extended use.

Integrated Laser Rangefinder and Ballistics

The integrated laser rangefinder measures targets at distances of up to 1500m with ±1m accuracy. Built-in ballistic calculation provides additional shooting support when engaging targets at varying distances.

High-Definition Thermal Image

A 640×512, 12μm VOx thermal sensor combines with a 50mm F1.0 objective lens and ≤15mK thermal sensitivity to reveal fine detail in complex environments. AI-powered image processing balances bright and dark areas to produce a cleaner and more detailed image.

Clip-On and Monocular Operation

The NANO N6 can be used as either a front-mounted thermal clip-on or, with the appropriate eyepiece attachment, as a handheld thermal monocular. Four selectable interface scaling levels help match the display to different daytime scope magnifications.

Replaceable Battery System

The replaceable 18650 battery system allows batteries to be changed quickly without taking the device out of service for charging. Two 18650 batteries and a battery charger are supplied.

Technical Specifications

Included in the Box

• RIX Optics NANO N6 thermal imaging clip-on
• Remote control
• 2 × 18650 batteries
• Battery charger
• USB Type-C cable
• Lens cloth
• 10 × thermal targets
• Wrench
• Battery fireproof bag
• Portable carry bag

Product specifications and supplied accessories may be updated by the manufacturer without prior notice.
