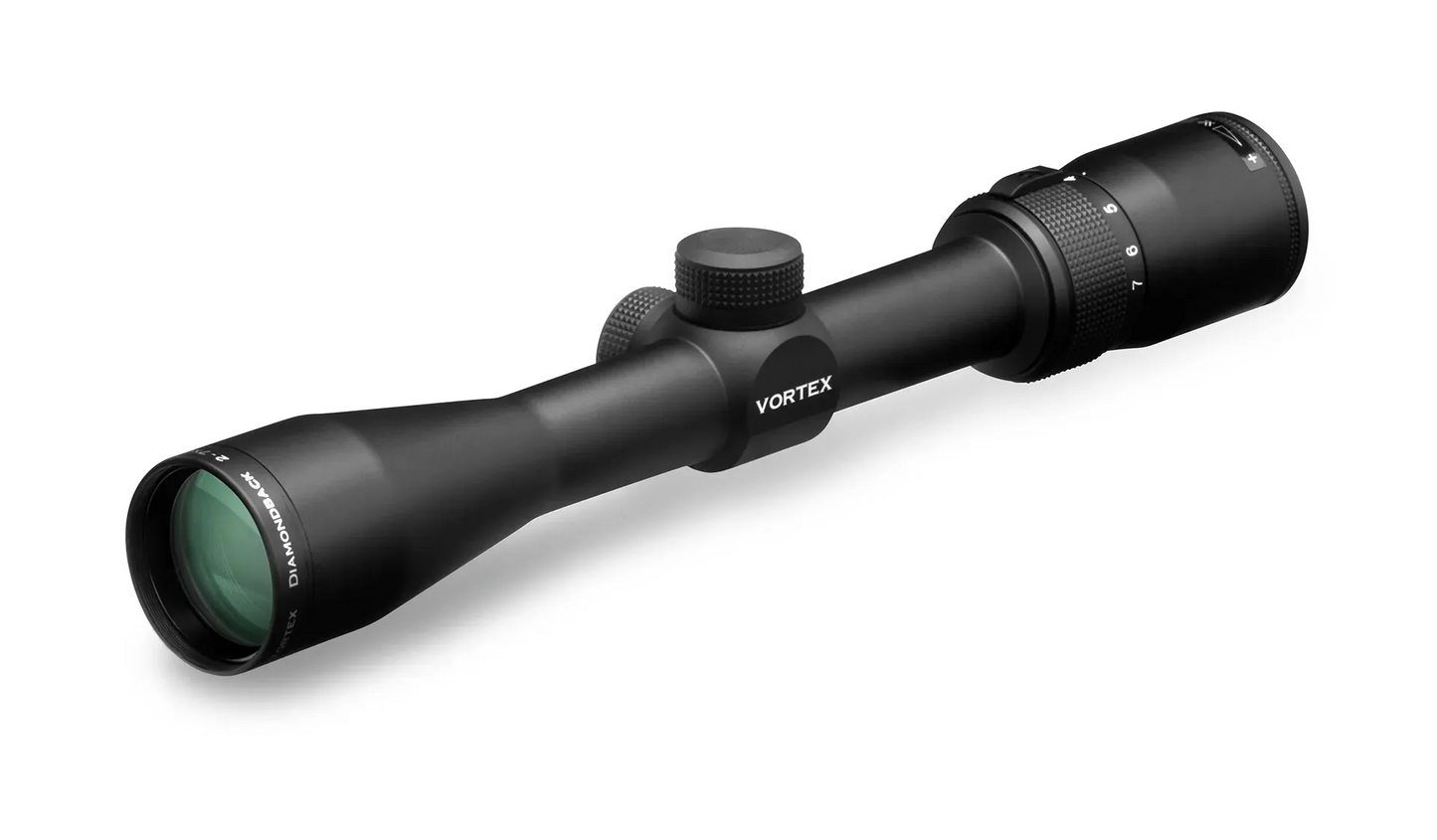

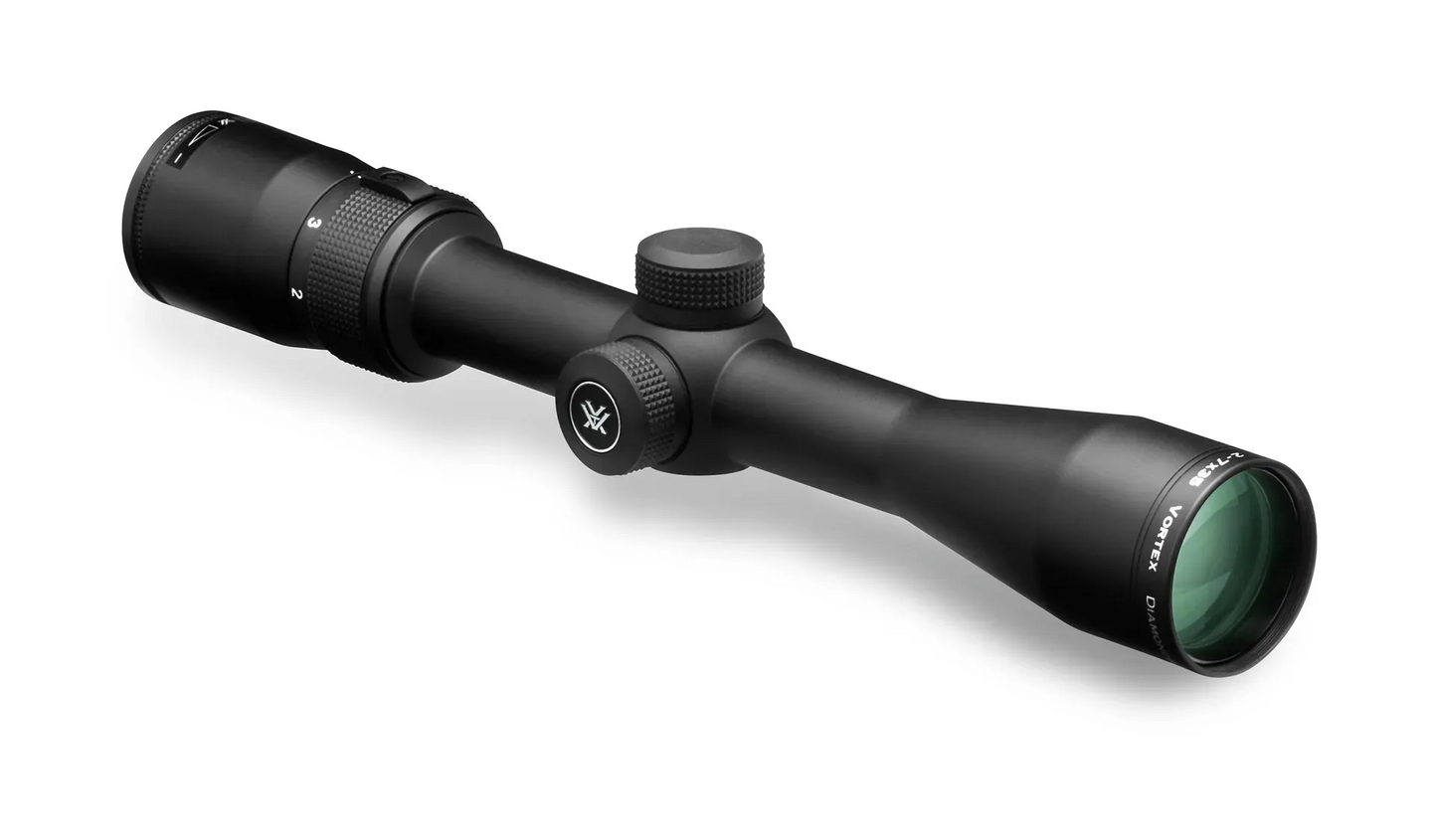

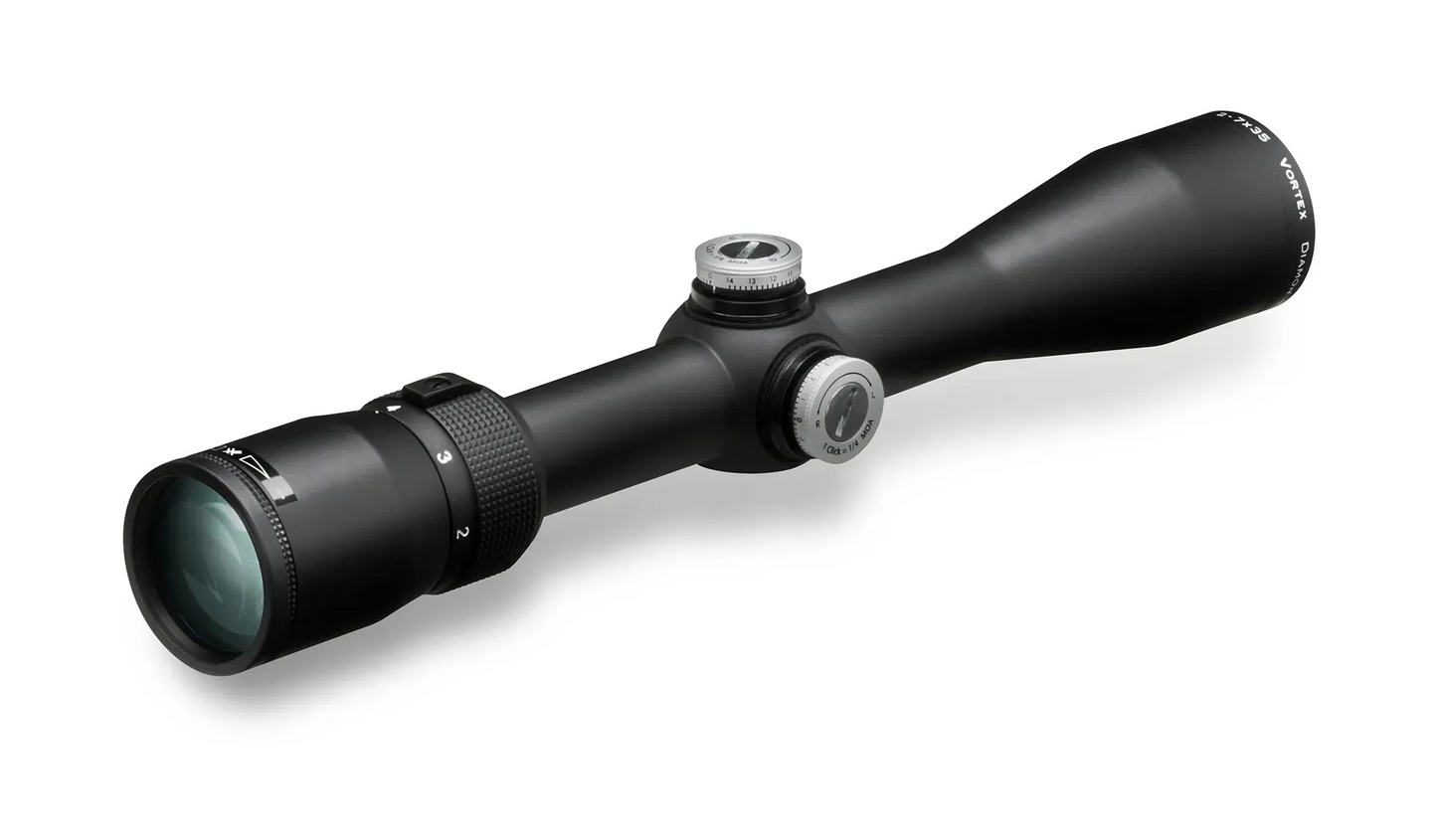

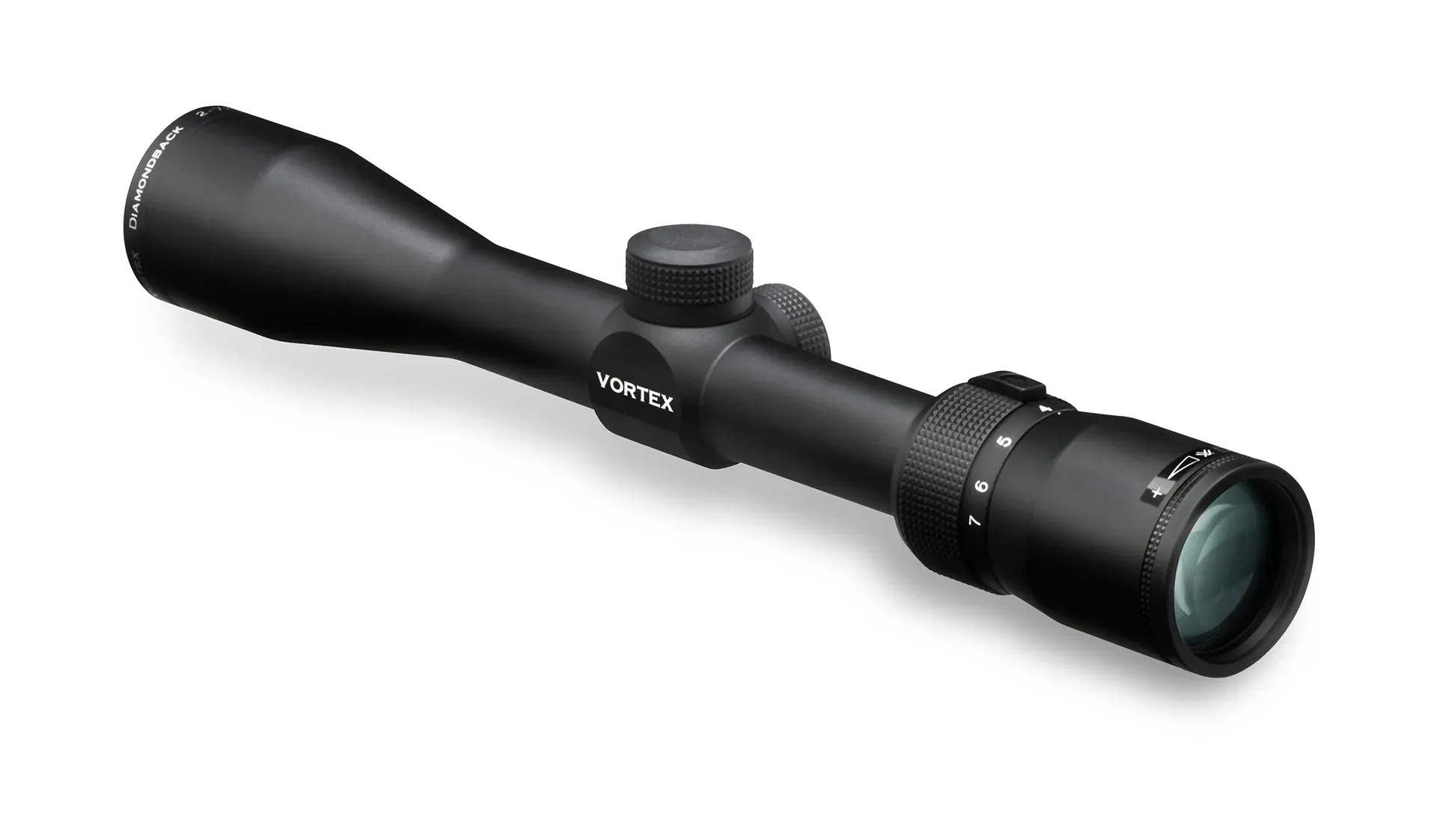

Diamondback 2-7x35 V-PLEX Rimfire

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.

Diamondback 2-7x35 Rimfire Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
11.6	1.83	2.1	5.16	3.35	3.1

Heights
H1	H2
1.72	1.69

Magnification	2-7x
Objective Lens Diameter	35 mm
Focal Plane	Second Focal Plane
Reticle	V-Plex (MOA)
Turret Style	Capped
Tube Size	1 inch
Adjustment Graduation	1/4 MOA
Parallax Setting	50 yards
Max Windage Adjustment	100 MOA
Max Elevation Adjustment	100 MOA
Travel Per Rotation	15 MOA
Field of View	64.3-19.3 ft/100 yds
Eye Relief	3.1 inches
Length	11.6 inches
Weight	13.7 oz

Aluminum Grade	Aircraft
Multi-Coated	Fully Multi-Coated
Shockproof	Rugged construction withstands recoil and impact.



V-PLEX RETICLE (MOA)

A popular all-purpose hunting reticle intended for a wide variety of hunting applications.

• Removable lens covers
• Lens cloth
