Vortex Optics

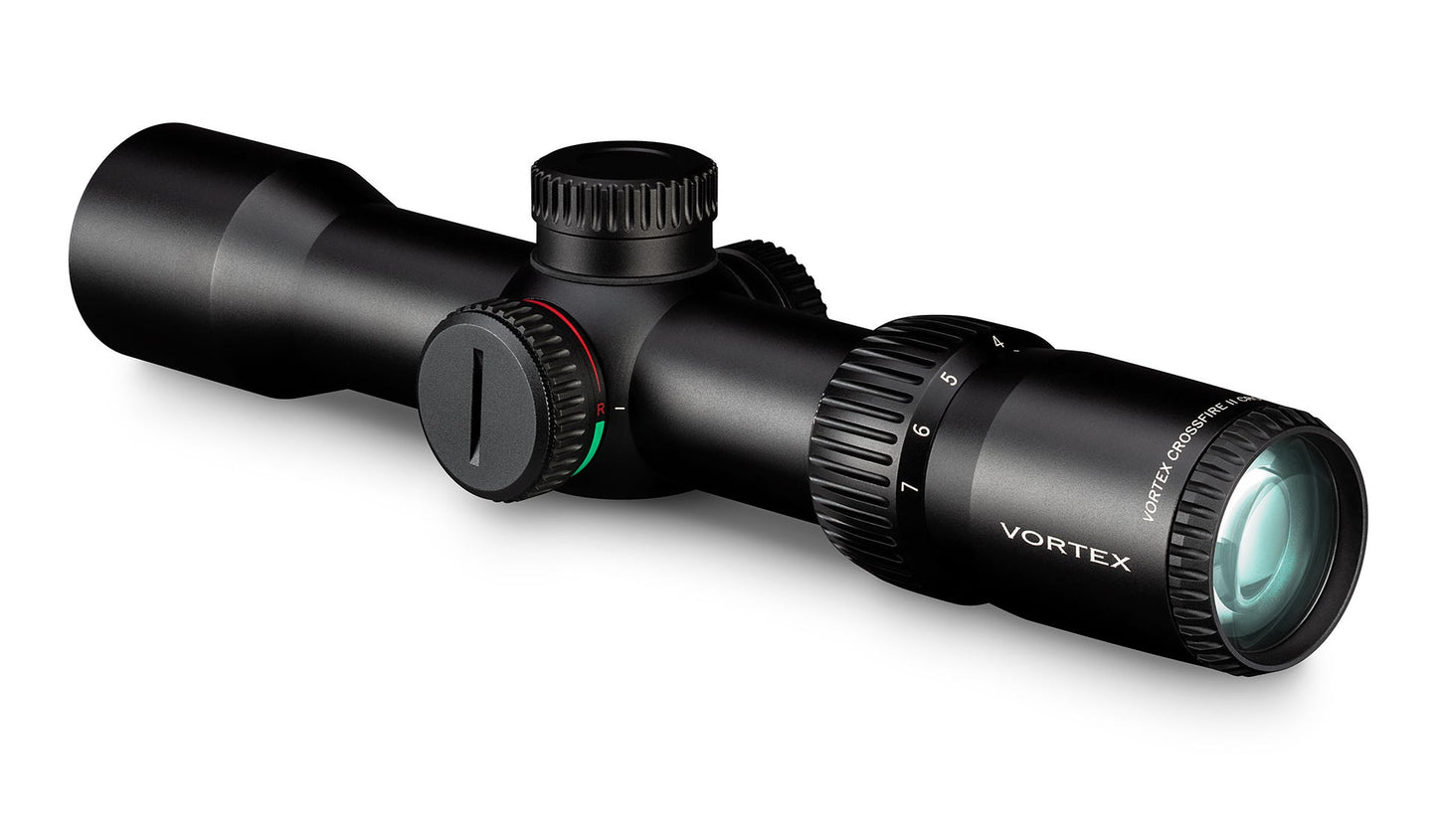

Crossfire II 2-7x32 Crossbow Scope

Crossfire II 2-7x32 Crossbow Scope

SKU: SKU: CF2-CB1

Out of stock

First light, last light, and all day long, this crossbow topper will have you stacking bolts and filling tags in no time. Our purpose-built reticle not only gives you holdover points out to 100 yards, it features red and green illumination for low-light shooting. We also included the magnification and FPS on the magnification ring to keep the scope compatible with a variety of crossbows and setups, and a wide field of view makes it perfect for a variety of shooting situations. Plus, we’re including rings, flip caps, and a neoprene cover, so it’s ready to mount right out of the box. 30mm rings included have a height of 1.1" (28mm).

Crossfire® II 2-7x32 Crossbow Scope Dimensions (in inches)
Crossfire II 2-7x32 Crossbow Scope Dimensions (in inches)
Lengths
L1 L2 L3 L4
9.5 1.7 1.5 4.5
Heights
H1 H2
1.5 1.5


Magnification 2-7x
Objective Lens Diameter 32 mm
Focal Plane Second Focal Plane
Turret Style Low Capped
Tube Size 30 mm
Adjustment Graduation 1/2 MOA
Parallax Setting Fixed @75 yds
Max Windage Adjustment 160 MOA
Max Elevation Adjustment 160 MOA
Travel Per Rotation 30 MOA
Field of View 57.5’ – 16.4’ @ 100 yards
Eye Relief 2.7 inches
Length 9.5 inches
Weight 14 oz


Multi-Coated Fully Multi-Coated
Shockproof Rugged construction withstands recoil and impact.


reticle

XBR-2® RETICLE (MOA)

The XBR-2® reticle is specifically designed for crossbows for a 40-yard zero and fast, accurate holdovers from 20-100 yards. The reticle is also equipped with dual illumination, red or green, for accuracy in low light.

Included:

  • 2 - 30mm rings
  • Flip caps (set)
  • Neoprene cover
  • Lens cloth
  • CR2032 battery
  • T-15 Torx wrench
